Supplies

• Material: PP (polypropylen) and TV20
• Durability: dimensionally stable, non-aging and weatherproof
• Compatibility: no plasticisers whatsoever, full compatibility with all other buildingmaterials, e.g. bitumen, PVC, PIB, ECB, elastomers etc.
• Dynamic and impact noise-insulating
• Height adjustment of one ZSt65/100 in combination with PLV50/75: between 135 mm and 170 mm, up to 550 mm (5 ZSt65/100)
• Levelling: minor unevenness can be compensated for by turning and adjusting the pedestal'sheight-adjustable lower section and/or threaded section to the exact millimetre
• More than one threaded section can be combined with the PLV 50/75 pedestal (all 3 types)

• Use as threaded section for the height-adjustable bacic element PLV 50/75
• 120 mm length fo the ZSt65/100 threaded section
• Inner and outer threads (where several ZSt65/100 threaded sections are combined with one PLV50/75 pedestal)
• Rotational height adjustment
• 20 mm of the des ZSt65/100 threaded section should be screwed in (marking on the thread)
• Packing unit: 56 pieces

In combination with the basic element PLV50/75 (all 3 types) the threded section ZSt65/100 can be used one to five times to equalize heights from 135-550 mm. In total, our height-adjustable pedestals cover the height span from 1,5 cm up to 55 cm. The pedestal system is suitable for almost any terrace decking:

Timber decking

• Installation of beams with spacers: diagonally between the spacers
• Installation of beams without spacers: inverted configuration

Grating

• Grating as a transition between paving and timber decking or placed in front of entrances
• Grating as a sole floor covering on roofs, balconies, in plazas etc.

Temporary decking

• Exhibition booth floors
• Marquee floors
• Dance floors
• Presentation spaces etc.

Installation in water features

• fountains
• shallow pools

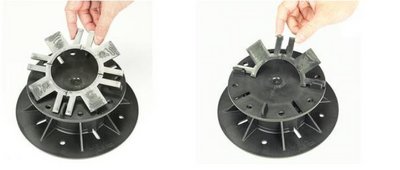

• 155 mm or 150 mm diameter of the shim (AS155/1 or AS15/3)
• 1 or 3 mm height of the shim
• 5 mm of the pedestals joint-spacer must be kept clear for adjustment of the tile, plate, p.e.
• Shims can be laid on, under or between pedestals
• Packing unit: 1000 pieces (AS155/1), or 500 pieces (AS15/3)

• Fine adjustment of individual panels, squared lumber or gratings
• Gradient compensation 0-5%
• Predetermined breaking points make it easier to split the shim in 1/2 and 1/4 parts. There is therefore no waste, since each subunit is reusable.
• Simple, non-slip stacking fixation of the AS by the joint spacers of the pedestal.
• Cost savings compared to conventional installation is about 35%.

• Material: PE (polyethylene)
• Durability: dimensionally stable, non-aging and weatherproof
• Compartibility: no plasticisers whatsoever, full compatibility with all other building materials, e.g. bitumen, PVC, PIB, ECB, elastomers etc.
• Dynamic and impact noise-insulating
• Stackable
• Can be spilt and installed as half  (e.g. installation on borders)
• Levelling: starting from 3 mm, uneveness and gradients can bei corrected
• Pressure Compensation

• 200 mm diameter of the pressure shim
• 3 mm heigth of the pressure shim
• Laying under or on top of the pedestals
• 314 cm² pressure bearing surface
• Predetermined bracking point
• Packing unti: 250 pieces

For better pressure distribution and enlargement of the support surface all pedestals or joint spacers can be combined with the pressure compensation disc DA200/3. It is suitable both as a base for the rigid pedestals PP155/15 and PP155/45 and as a support for the height-adjustable pedestal PLV50/75.
