The height-adjustable pedestal PLV50/75 consist of two parts, a foot (the lower plate) and a lid (the top plate) with thread. They are made of shape-stable, aging- and weather-resistant plastic (polypropylene = PP + TV 20). The raw material used does not contain plasticizers. Thus, an absolute compatibility with all other building materials is given.

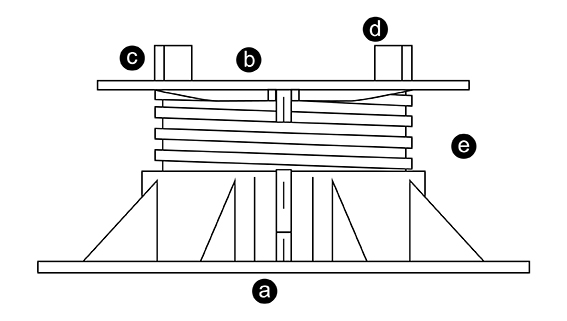

PLV50/75 Details

a) Underplate
Diameter 200 mm/Pressure Support 314cm²

b) Top Plate with Tread
Diameter of top plate 155 mm/Pressure Support of top plate 190cm²
Distance Holder inner space 70 mm

c) Spacer Height
15 mm (no spacer/Typ 0-FK)

d) Spacer Width
4 mm (nicht bei Typ 0-FK)

e) Height-adjustment PLV50/75
from 50-75 mm and in combination with our Supplies for heights till 550 mm

Height-Adjustable Pedestals are:

• swinging
• vibration-damping
• stackable
• locked against each other on both sides (inverted)

Small uneveness is compensated by turing the PLV-underplate in millimeter steps.

Material
PP (Polypropylen) + TV20

Durability
dimensionally stable, resistant to aging and weathering

Compatibility
no plasticizer, absolute compartibilty with other building materials, for example bitumen, PVC, PIB, ECB, elastomeres and more

Height-Adjustment
from 50 mm
in combination with 1-5 tread-elements ZST65/100 up to 500mm

Stepless Leveling
by turning and adjusting the heigth-adjustable lower part of the pedestal bearing with millimeter precision

Combination Possibility
with all pedestals, rigid or height-adjustable, shim washers, pressure shim washers and tread-elements of our production

> Combination possibilities

• Pedestal Underplate:
  Ø 200 mm, Pressure Support 314 cm²
• Pedestal Top Plate:
  Ø 155 mm, Pressure Support 190 cm²
• Spacer:
  H/W/L 15 mm/4mm/20mm, Distance Holder inner space 70 mm  (expect PLV50/75-0-FK without Spacer)
• Height-Adjustment:
  by turning 50 mm bis 75 mm
• Pressure:
  500 kg
• Heat Resistance:
  constant +90°C
• Cold Resistance:
  -20°
• Packing:
  56 pcs

> Informationen zur Materialprüfung

Applications of our height-adjustable pedestals:

• Plates/Tiles:
  ceramic tiles, stone, marble, granite, concrete, etc.
• Timber:
  Kantholz, Holzfliesen, Holzplatten etc.
• Plastic:
  e.g. WPC
• Grids:
  drain systems, gratings etc.
• Temporary installations:
  e.g. dancefoors, water features, booths, industrial floors, dooble floors, etc.

> Further Informations to Pedestal Applications

Specific installation instructions

• Four plates or gratings each share one pedestal
• In the case of wood flooring, the load-bearing construction is placed on the stilt pedestals
• The pedestals can be stacked and brought together with the balancing discs to the desired height and inclination
• Half or quarter pedestals are used at the edge
